Minuet

Superior Tube Sound, Handcrafted Perfection

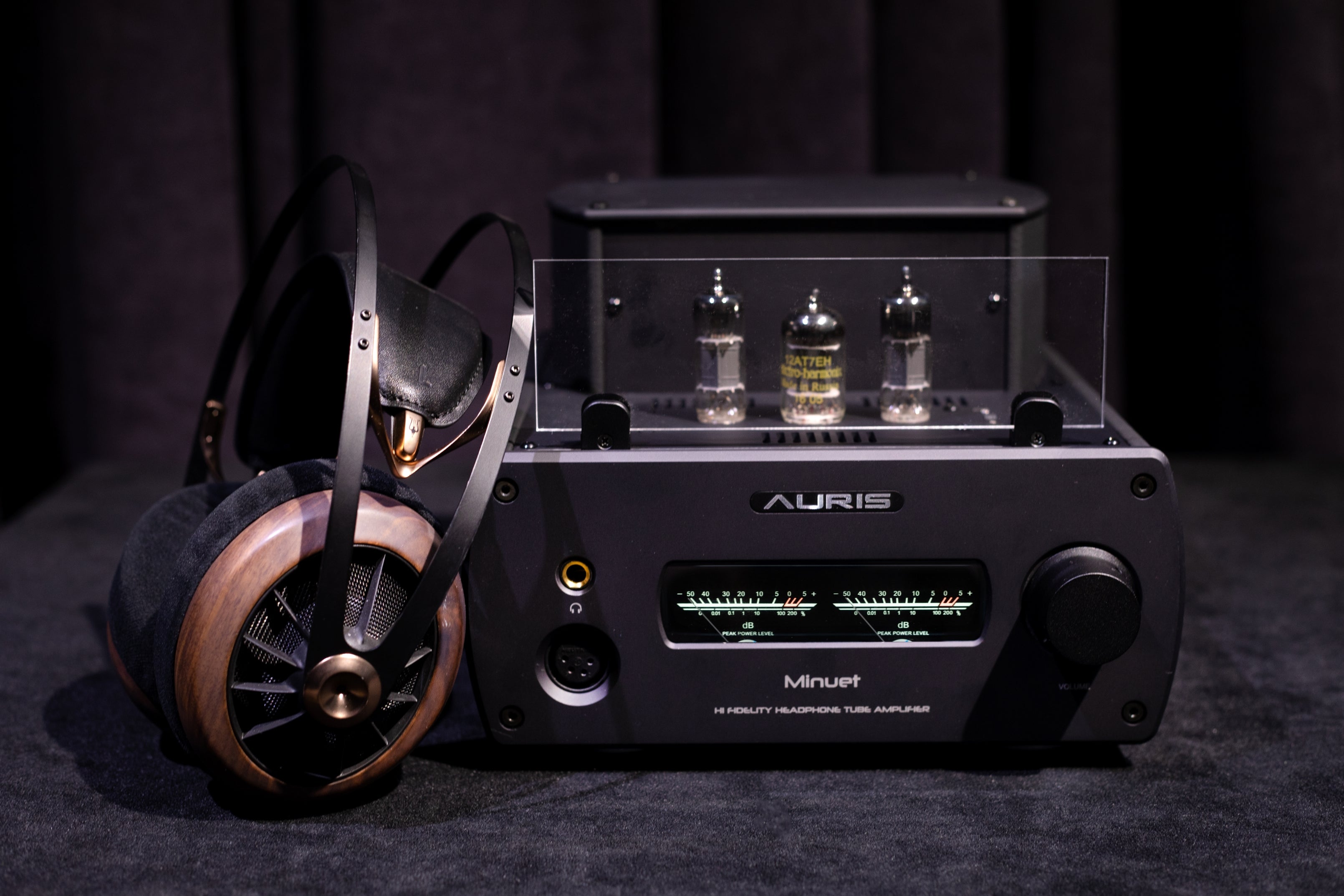

The Auris Minuet is a premium tube headphone amplifier featuring NOS EL95 or PL95 tubes from Ei Yugoslavia and a 12AU7 preamp tube, delivering a natural and warm sound signature. Its ultra-linear design without negative feedback ensures pristine signal transmission from source to headphones.

Key Features:

* Hand-wound double C-core output transformers – Exceptional clarity, dynamics, and musical depth

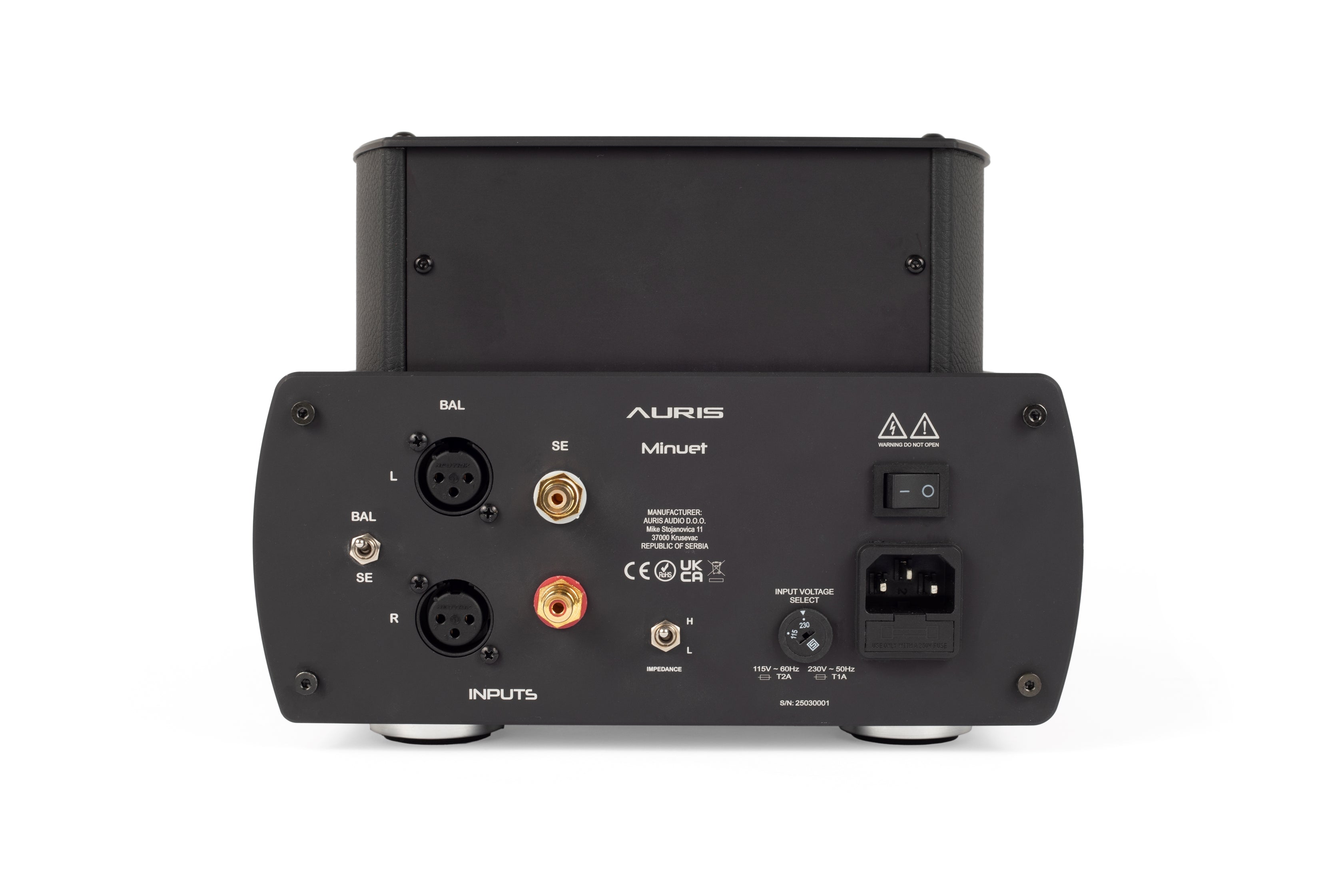

* Balanced (XLR) and unbalanced (RCA) inputs – Seamless Hi-Fi system integration

* Impedance selector (32Ω / 150Ω) – Optimized performance for various headphones

* High-quality ALPS volume potentiometer – Precision control for smooth operation

* Analog VU meter – Real-time output power monitoring

* Premium aluminum chassis with leather side panels – Classic Auris design and durability

* Headphone outputs: 4-pin XLR balanced & 6.3 mm stereo



With enhanced power supply and upgraded output transformers, the Auris Minuet delivers a fuller, richer sound than any previous Auris headphone amplifier.

Upgrade your listening experience with the Auris Minuet.





Product Specification



Analog Inputs 2 x RCA 1 x XLR Headphone Outputs 1 x 6.3mm 1 x XLR Pre Out Outputs 1 x RCA 1 x XLR Tubes 2 x 300B 2 x CV181/6SN7 Max Power Output 7W   Output Impedance 32/80/150/300/600 Ω   Dimensions L x W x H 460 x 440 x 310 mm 18.11" x 17.32" x 12.20"

Headphones SE Out BAL Out Max Power 7W 7W   32 Ω   = 15V 32 Ω   = 15V   80 Ω   = 23.5V 80 Ω   = 23.5V   150 Ω = 32.5V 150 Ω = 32.5V   300 Ω = 46V 300 Ω = 46V   600 Ω = 65V 600 Ω = 65V             THD+N 0.45% dB at 1W 0.45% dB at 1W Frequency response ±0.45 dB at 1W ±0.45 dB at 1W   ±0.9 dB at Max Power ±0.9 dB at Max Power SNR 100 dB 100 dB       Input Sensitivity (for max power/voltage at output) SE input BAL input   0.8V 1.6V

Pre Out     Max Output voltage 17V   THD+N 0.06% for VOL<20 [Vout=7V]   Frequency response ±0.2 dB for VOL<20 [Vout=7V]   SNR 100 dB
